Flanges

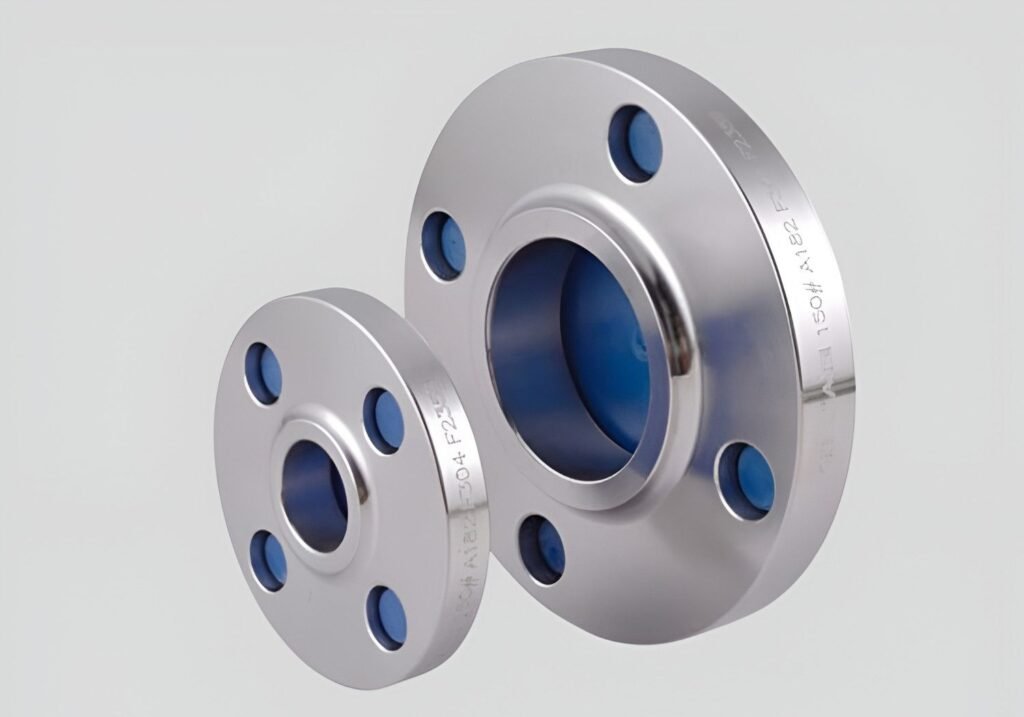

Pavandeep Steel Center offers top-quality Duplex and Super Duplex stainless steel flanges designed for demanding industrial and offshore applications. These flanges provide exceptional mechanical strength, durability, and resistance to corrosion in harsh environments. Duplex flanges, such as grade 2205, feature a balanced austenitic-ferritic microstructure. This gives them higher tensile strength and superior resistance to stress corrosion cracking compared to conventional stainless steels.
Super Duplex flanges, including grade 2507, deliver even greater corrosion resistance and strength. They are ideal for highly aggressive conditions in chemical, oil, gas, and marine industries. Our flanges are available in various types, including weld neck, slip-on, socket weld, blind, lap joint, and threaded flanges. This ensures compatibility with different piping systems and applications. Duplex and Super Duplex flanges comply with international standards such as ASTM, ASME, and EN. Rigorous quality checks guarantee dimensional accuracy, surface finish, and mechanical properties. These flanges perform reliably under high pressure and extreme temperature conditions, making them suitable for pipelines, pressure vessels, and critical industrial processes.
Flanges Grades
- Duplex 2205
- Super Duplex 2507
Features Of Flanges
- High corrosion and pitting resistance
- Superior strength and durability
- Suitable for high pressure and temperature
- Good weldability and fabrication
- Long service life
- Ideal for aggressive and marine environments
Applications Of Flanges
- Desalination and water treatment plants
- Storage tanks and industrial piping systems
- Power generation plants
- Pressure vessels and heat exchangers
- Offshore and marine structures
- Oil and gas pipelines and refineries
Specifications of Flanges
| Specification | Duplex 2205 | Super Duplex 2507 |
| Material Type | Stainless Steel | Stainless Steel |
| Flange Types | Weld Neck, Slip-On, Socket Weld, Blind, Lap Joint, Threaded | Weld Neck, Slip-On, Socket Weld, Blind, Lap Joint, Threaded |
| Size Range | ½" NB – 48" NB (custom sizes available) | ½" NB – 48" NB (custom sizes available) |
| Pressure Classes | 150, 300, 600, 900, 1500, 2500 | 150, 300, 600, 900, 1500, 2500 |
| Thickness | Standard or customized | Standard or customized |
| Surface Finish | Machined, Polished, or Plain | Machined, Polished, or Plain |
| Tensile Strength | 620 – 850 MPa | 750 – 950 MPa |
| Yield Strength | 450 – 550 MPa | 550 – 750 MPa |
| Elongation | 25 – 35% | 20 – 30% |
| Corrosion Resistance | Excellent against pitting & crevice corrosion | Superior, highly resistant to pitting, crevice & stress corrosion |
| Standards | ASTM A182, ASME B16.5, EN 1092 | ASTM A182, ASME B16.5, EN 1092 |
